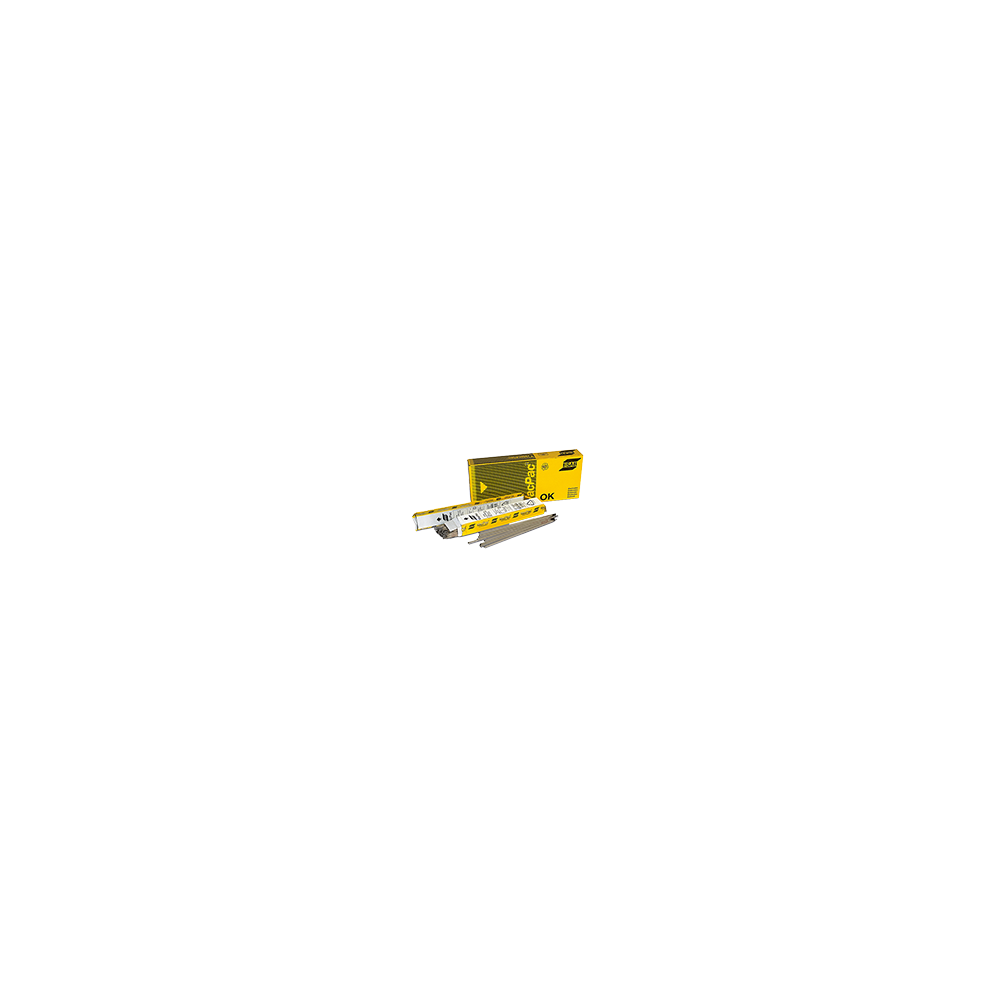

Cast iron electrode ESAB OK 92.18 2.5X300 CF. OF 41 PCS OK Ni-CI
OK Ni-CI is a nickel cored electrode for joining normal grades of cast iron, such as grey-, ductile- and malleable irons. It is also suitable for rectification and repair of these grades and for joining them to steel. Deposition is done on cold or slightly preheated cast iron. Weld metal is well machinable. Typical applications are repair of cast iron parts such as cracks in engine blocks, pump housings, gear boxes, frames as well as foundry defects.
Cast iron electrode ESAB OK 92.18 2.5X300 CF. OF 41 PCS OK Ni-CI
€145.03
VAT included
92182520L0
OK Ni-CI is a nickel cored electrode for joining normal grades of cast iron, such as grey-, ductile- and malleable irons. It is also suitable for rectification and repair of these grades and for joining them to steel. Deposition is done on cold or slightly preheated cast iron. Weld metal is well machinable. Typical applications are repair of cast iron parts such as cracks in engine blocks, pump housings, gear boxes, frames as well as foundry defects.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Specifications
| Classifications | SFA/AWS A5.15 : ENi-CI EN ISO 1071 : EC Ni-CI 3 |
| Alloy type | Ni-base alloy |
| Type of coating | Basic Special High Graphite |
| Welding current | AC, DC+- |
| Weld Metal Analysis | ||||||
|---|---|---|---|---|---|---|
| C | Yes | Mn | No | Who | To the | Faith |
| typical deposit analysis | ||||||
| 1.0 | 0.3 | 0.2 | 93.5 | 0.3 | 0.1 | 4.5 |
| Deposit data | |||||||
|---|---|---|---|---|---|---|---|
| Deposit rate 90% I max | Diameter | Amp | Efficiency (%) | Volt | Melting time for electrode at 90% I max | Number of electrodes/kg of welded metal | |
| 0.9 kg/h ( 2.0 lbs/h ) |
2.5 x 300.0 mm ( 0.098 x 11.8 in. ) |
55-110 A | 71% | 21 V | 46 sec | 83 | |
| 1.2 kg/h ( 2.6 lbs/hr ) |
3.2 x 350.0 mm ( 1/8 x 13.8 in. ) |
80-140 A | 68% | 20 V | 66 sec | 45 | |
| 1.7 kg/h ( 3.7 lbs/hr ) |
4.0 x 350.0 mm ( 5/32 x 13.8 in. ) |
100-190 A | 70% | 19 V | 71 sec | 29 | |
92182520L0
